FortiGate 80F Firewall Malaysia – Secure Your Network with High-Speed Protection
Image via fortinet.com
Achieve unparalleled speed and efficiency for a robust and responsive network.
- High-performance next-generation firewall with industry-leading NGFW throughput for modern networks.
- Simplify configuration and management with an easy-to-use interface, saving you time and reducing complexity.
- Seamlessly integrate with your existing systems to enhance capabilities without extensive overhauls.
What is a FortiGate 80F?
FortiGate 80F is a high-performance, next-generation firewall that integrates seamlessly with your existing infrastructure. Designed to meet the demands of modern businesses by enhancing your network’s speed and performance while maintaining top-tier security.
Image via fortinet.com
Benefits and Features of FortiGate 80F
- High-Performance Next-Generation Firewall: Delivers fast NGFW, IPS, and threat protection performance using Fortinet’s F-series architecture, suitable for small to medium-sized business networks.
- Advanced Threat Protection with FortiGuard Services: Protects against malware, ransomware, and emerging threats using FortiGuard security services. Advanced features require active FortiGuard subscriptions.

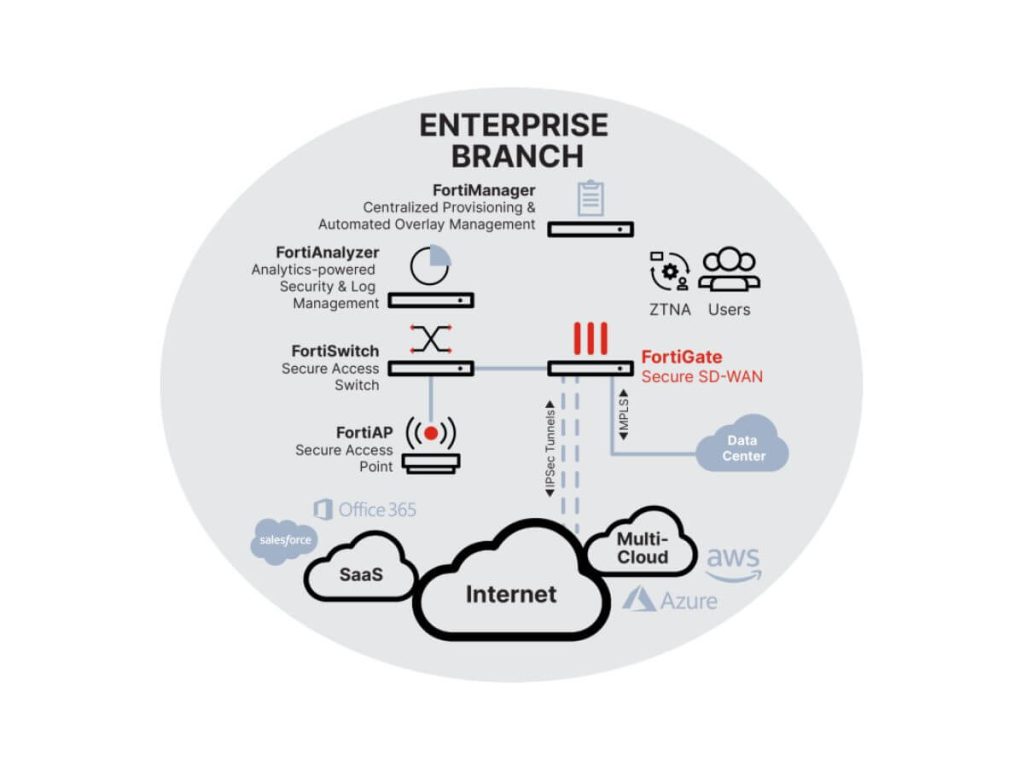

- Secure SD-WAN for Branch Connectivity: Supports integrated Secure SD-WAN to optimize application performance, reduce WAN costs, and improve network reliability across multiple locations.
- Deep SSL Inspection Including TLS 1.3: Enables inspection of encrypted traffic to identify hidden threats while maintaining low latency.
- Zero Trust Network Access (ZTNA) Ready: Supports Universal ZTNA to provide secure, identity-based access to applications for remote and hybrid users.
- Centralized Management and Automation: Integrates with FortiManager and the Fortinet Security Fabric for simplified policy management, enhanced visibility, and automated workflows.
Image via fortinet.com
FortiGate 80F Specifications (Datasheet)
FortiGate 80F is an ideal choice for businesses seeking performance and advanced security.

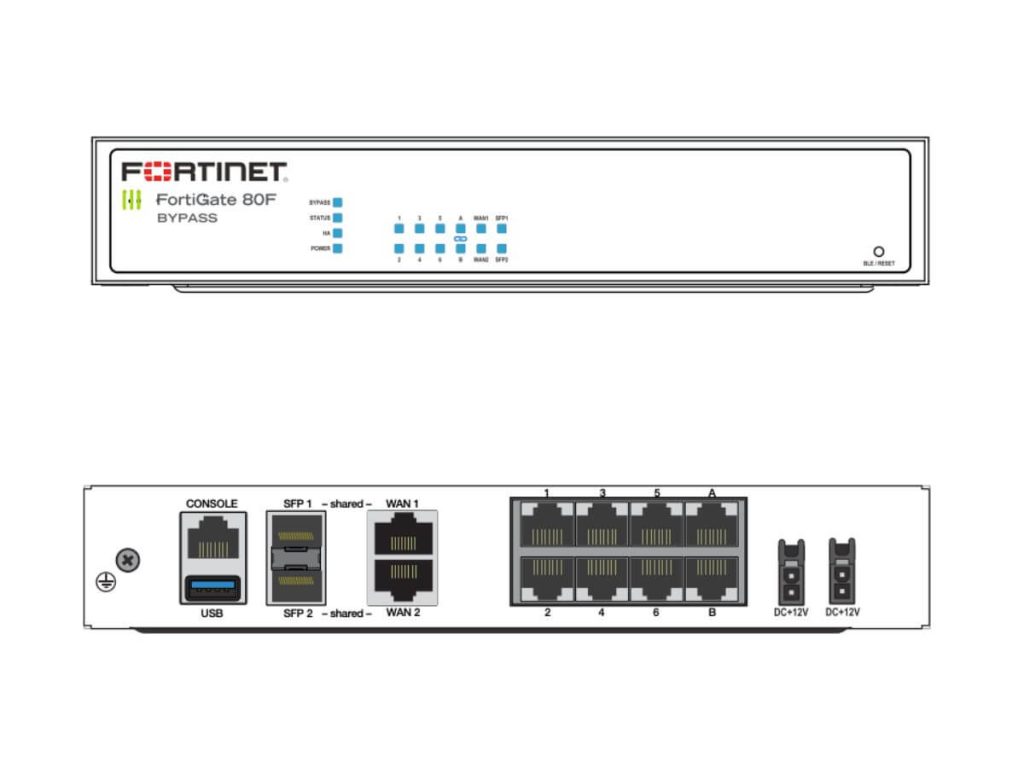

Interfaces and Modules
| Feature | Specification |
|---|---|
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Internal Ports (including FortiLink) | 8 (2 default FortiLink) |
| GE RJ45 FortiLink Ports (Default Configuration) | 2 |
| USB Ports 3.0 | 1 |
| Console (RJ45) | 1 |
| Trusted Platform Module (TPM) | Yes |
| Internal Storage | None |
| Bluetooth Low Energy (BLE) | No |
System Performance — Enterprise Traffic Mix
| Feature | Specification |
|---|---|
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 900 Mbps |
System Performance and Capacity
| Feature | Specification |
|---|---|
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 10 / 10 / 7 Gbps |
| Firewall Latency (64 byte, UDP) | 3.23 μs |
| Firewall Throughput (Packets per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 45,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users (Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg HTTPS) | 715 Mbps |
| SSL Inspection CPS (IPS, avg HTTPS) | 700 |
| SSL Inspection Concurrent Sessions (IPS, avg HTTPS) | 100,000 |
| Application Control Throughput (HTTP 64K) | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 9 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power
| Feature | Specification |
|---|---|
| Height x Width x Length (mm) | 40 x 216 x 178 |
| Weight | 1.1 kg |
| Form Factor | Desktop / Wall Mount / Rack Tray |
| Input Rating | 12V DC, 3A (dual redundancy optional) |
| Power Required (Redundancy Optional) | 1 external DC adapter included, AC 100–240V, 50/60 Hz |
| Maximum Current | 115VAC/0.4A, 230VAC/0.2A |
| Power Consumption (Average / Maximum) | 12.69 W / 15.51 W |
| Heat Dissipation | 52.55 BTU/h |
Operating Environment and Certifications
| Feature | Specification |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -35°C to 70°C |
| Humidity | 10% to 90% non-condensing |
| Noise Level | Fanless, 0 dBA |
| Operating Altitude | Up to 2,250 m |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | USGv6 / IPv6 |
FortiGate 80F Use Cases
Network Edge Defense
FortiGate 80F protects your network from cyber threats at the perimeter. Real-time traffic analysis and policy-based controls block malware, web attacks, and hidden risks—while purpose-built hardware keeps performance and energy use high.
Intelligent WAN Connectivity
Optimize application performance and security across all WAN links. Built-in traffic acceleration and prioritization ensure cloud and remote users get fast, secure access without slowing down critical business operations.
Branch Office Protection
Secure branch locations with end-to-end visibility. Automatically detect devices, including IoT endpoints, and enforce security policies. Combine with FortiSwitch and FortiAP for a unified, centrally managed security fabric that reduces operational complexity.
Zero Trust Application Access
Enable secure access for employees, contractors, and guests regardless of location. FortiGate 80F verifies users and devices before granting access, supporting both managed and unmanaged endpoints while minimizing your attack surface.
Get the Best Price for FortiGate 80F
Secure your network now and empower your business to operate with confidence and agility.
FAQs on FortiGate 80F
How many users can FortiGate 80F handle?
The FortiGate 80F is ideally suited for 50 to 150 users. While it is recommended for up to 100 users in high-security environments with full threat protection enabled, its high-performance SOC4 processor allows it to scale effectively for larger branch offices depending on specific traffic demands.
What is the difference between FortiGate 80F and 81F?
FortiGate 81F includes onboard storage, but FortiGate 80F doesn’t.
What is the difference between FortiGate 80F and 100E?
FortiGate 80F is designed for small to medium-sized businesses, delivering modern F-series performance with advanced security services, including NGFW, SD-WAN, and SSL inspection.
Can FortiGate 80F integrate with cloud or SD-WAN environments?
Yes. The FortiGate 80F features a purpose-built SOC4 SD-WAN ASIC that enables high-performance secure SD-WAN. It allows businesses to:
- Optimize Cloud Access: Speed up SaaS applications (such as Microsoft 365 and Salesforce) with direct cloud-on-ramp.
- Dynamic Path Steering: Automatically route critical traffic through the best available link (Broadband, LTE, or MPLS) to prevent brownouts.
- Self-Healing Networks: Ensure sub-second failover to keep video calls and business-critical apps running even if a connection fails.
- Seamless Cloud Security: Easily extend your security policies to hybrid and multi-cloud environments like AWS, Azure, and Google Cloud.
