FortiGate 200F (Malaysia)

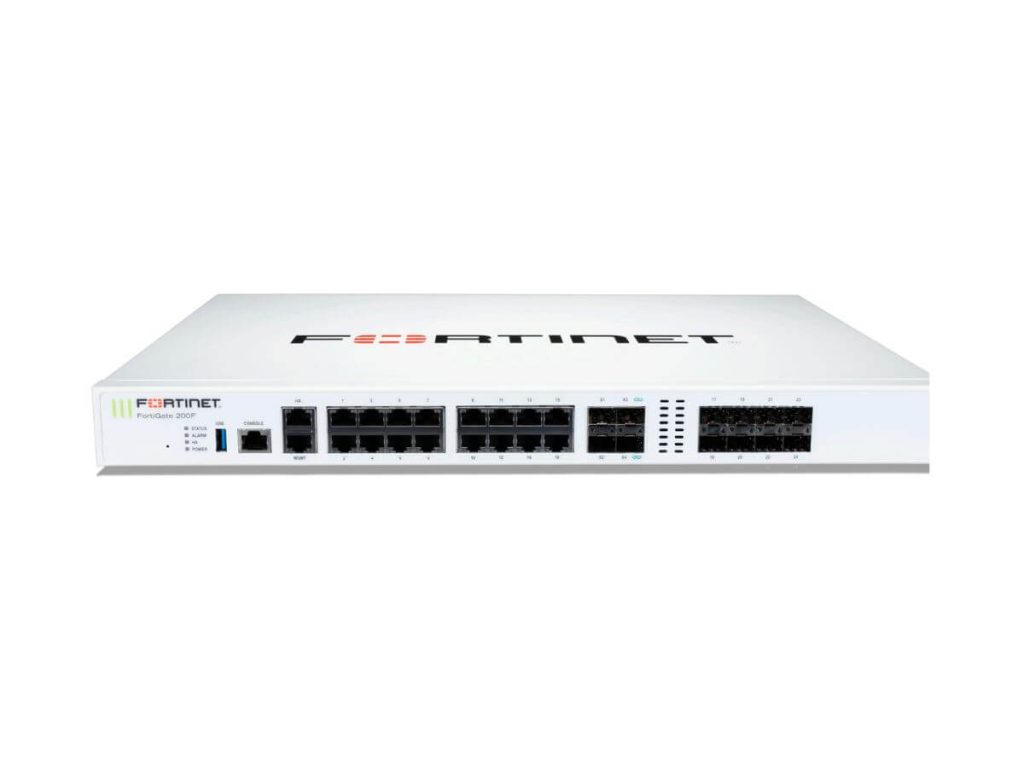

Image via fortinet.com
Defend against various cyber threats with comprehensive NGFW capabilities for protection.
- Protect your network with advanced threat protection, leveraging leading threat intelligence and deep packet inspection.
- Experience exceptional speed and reliability with high performance, perfect for high-traffic environments.
- Effortlessly scale your security solutions with our adaptable scalability feature, growing with your business needs.
What is a FortiGate 200F?
FortiGate 200F is a high-performance next-generation firewall offering advanced threat protection and comprehensive visibility. It combines extensive networking capabilities with integrated threat intelligence and automated detection.

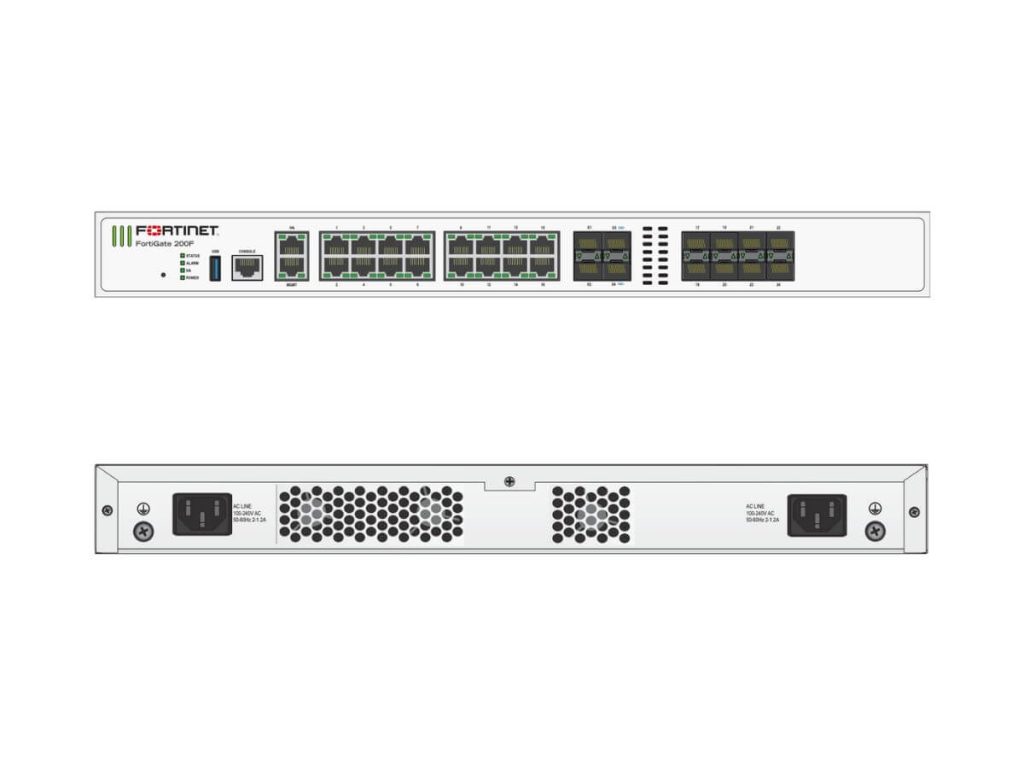

Image via fortinet.com

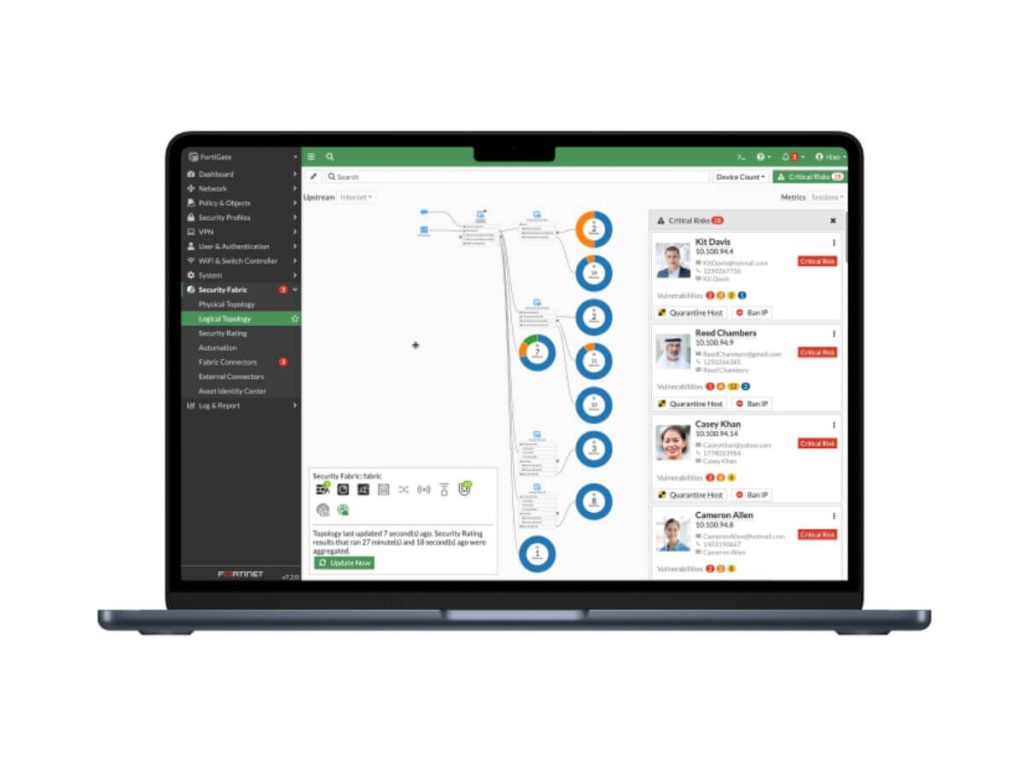

Image via fortinet.com
FortiGate 200F Specifications
FortiGate 200F includes advanced features designed to deliver top-notch security.
Interfaces and Modules
GE RJ45 Ports | 16 | |
GE RJ45 Management / HA | 1 / 1 | |
GE SFP Slots | 8 | |
10 GE SFP+ FortiLink Slots (default) | 2 | |
10 GE SFP+ Slots | 2 | |
USB Port | 1 | |
Console Port | 1 | |
Trusted Platform Module (TPM) | Yes | |
Bluetooth Low Energy (BLE) | Yes |
System Performance — Enterprise Traffic Mix
IPS Throughput | 5 Gbps | |
NGFW Throughput | 3.5 Gbps | |
Threat Protection Throughput | 3 Gbps |
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 27 / 27 / 11 Gbps | |
Firewall Latency (64 byte, UDP) | 4.78 μs | |
Firewall Throughput (Packet per Second) | 16.5 Mpps | |
Concurrent Sessions (TCP) | 3 Million | |
New Sessions/Second (TCP) | 280 000 | |
Firewall Policies | 10 000 | |
IPsec VPN Throughput (512 byte) | 13 Gbps | |
Gateway-to-Gateway IPsec VPN Tunnels | 2000 | |
Client-to-Gateway IPsec VPN Tunnels | 16 000 | |
SSL-VPN Throughput | 2 Gbps | |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 | |
SSL Inspection Throughput (IPS, avg HTTPS) | 4 Gbps | |
SSL Inspection CPS (IPS, avg. HTTPS) | 3500 | |
SSL Inspection Concurrent Session (IPS, avg HTTPS) | 300 000 | |
Application Control Throughput (HTTP 64K) | 13 Gbps | |
CAPWAP Throughput (HTTP 64K) | 20 Gbps | |
Virtual Domains (Default / Maximum) | 10 / 10 | |
Maximum Number of FortiSwitches Supported | 64 | |
Maximum Number of FortiAPs (Total /Tunnel) | 256 / 128 | |
Maximum Number of FortiTokens | 5000 | |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power
Height x Width x Length (mm) | 44 x 432 x 342 | |
Weight | (4.5 kg | |
Form Factor (supports EIA/non-EIA standards) | Ear Mount, 1 RU | |
AC Power Supply | 100–240V AC, 50/60 Hz | |
Power Consumption (Average / Maximum) | 101.92 W / 118.90 W | |
Current (Maximum) | 100V / 2A, 240V / 1.2A | |
Heat Dissipation | 405.70 BTU/h | |
Redundant Power Supplies | Yes (Default dual non-swappable AC PSU for 1+1 Redundancy) | |
Power Supply Efficiency Rating | 80Plus Compliant |
Operating Environment and Certifications
Operating Temperature | 0°C to 40°C | |
Storage Temperature | -35°C to 70°C | |
Humidity | 20% to 90% non-condensing | |
Noise Level | 49.9 dBA | |
Forced Airflow | Side to Back | |
Operating Altitude | Up to 3048 m | |
Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | |
Certifications | USGv6/IPv6 |
Get the Best Price for FortiGate 200F
Upgrade your network security and safeguard your business’s future with peace of mind.
FAQs on FortiGate 200F
How many users can a FortiGate 200F handle?
FortiGate 200F is designed to support 200-300 users effectively.
What is the feature of FortiGate 200F?
FortiGate 200F Series enhances physical network security by generating, storing, and authenticating cryptographic keys, protecting against malware and phishing attacks.
What is the difference between FortiGate 200F and 201F?
FortiGate 201F comes with onboard storage, whereas the 200F does not.
