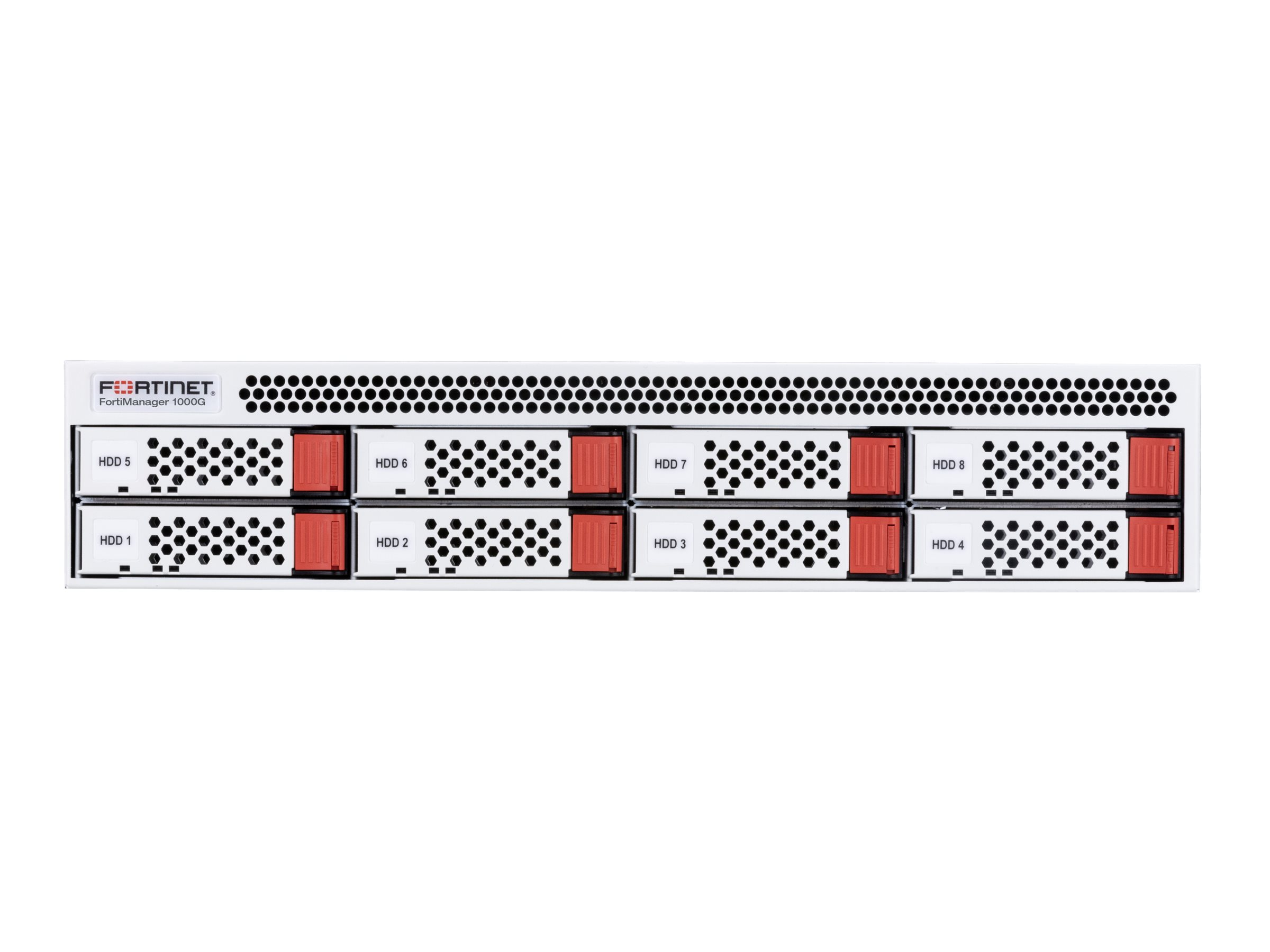

FortiManager 1000G Network Management Platform
Image via fortinet.com
Centralized, high‑capacity network management built for enterprise‑scale Fortinet deployments, manage up to 1,000 devices with efficiency and confidence.
Product Overview (FortiManager 1000G)
FortiManager 1000G is a high-performance centralized management appliance for large-scale Fortinet deployments across enterprise and service provider environments.
It provides a single platform to configure, deploy, monitor, and manage FortiGate firewalls, switches, and access points across distributed networks, enabling consistent policy enforcement, automated provisioning, and centralized operational control.
Built for scale, it supports large device environments and helps standardize configurations, streamline operations, and maintain governance across multi-site infrastructures.
FortiManager is also available in appliance, virtual, cloud, and Hardware-as-a-Service deployment models.
Pricing available upon request based on deployment and licensing requirements.
Image via fortinet.com
Centralized management across distributed environments
Manage firewalls, SD-WAN, switches, and wireless infrastructure through a single interface, providing unified policy control and consistent enforcement across all sites.
Automation with zero-touch provisioning
Manage firewalls, SD-WAN, switches, and wireless infrastructure through a single interface, providing unified policy control and consistent enforcement across all sites.
Multi-tenant control with ADOM segmentation
Segment environments securely within a single platform using Administrative Domains, with role-based access control for operational separation.

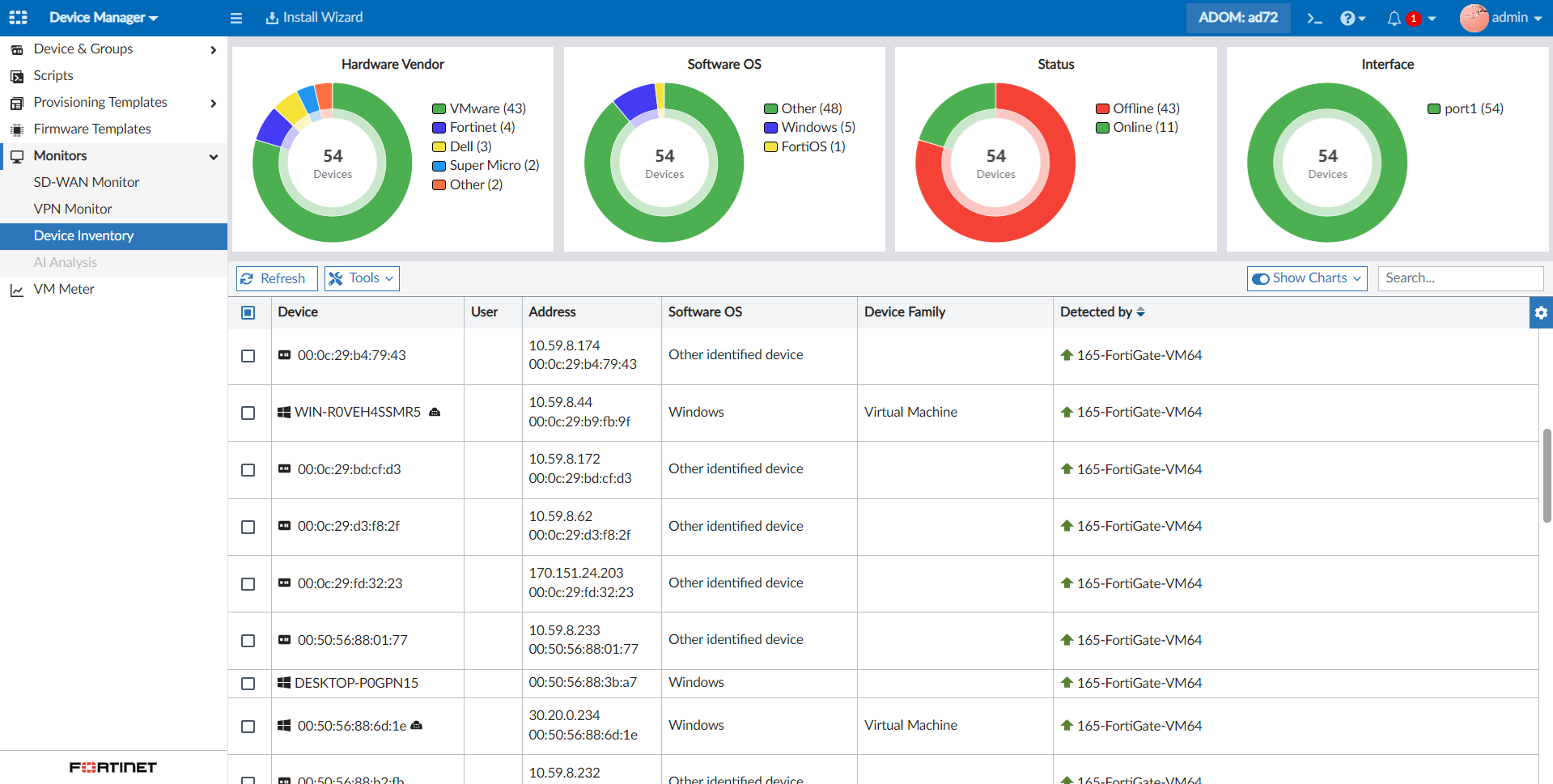

Real-time visibility and troubleshooting
Monitor devices, traffic, and applications with built-in diagnostic tools that support faster fault detection and resolution.
Scalable architecture for large deployments
Support thousands of devices within a centralized system designed for distributed enterprise environments and growth.
Integrated Security Fabric management
Extend centralized control across the Fortinet Security Fabric with consistent policy enforcement and ecosystem-wide integration.
FortiManager 1000G Specifications
The FortiManager 200G is designed to provide reliable, centralized management for mid-sized networks. Below are the key specifications for this model:
| Category | Specification |
|---|---|
| Device Capacity | Up to 1,000 devices / VDOMs |
| Sustained Log Rate | 50 GB per day |
| Total Storage Capacity | 32 TB (8 × 4 TB drives) |
| Usable Storage (RAID) | 24 TB |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 |
| Default RAID Level | RAID 50 |
| Form Factor | 2 RU rackmount |
| Network Interfaces | 2 × 25GbE SFP28, 2 × 2.5G RJ45 |
| Console Port | RJ45 |
| Self-Encrypting Drives (SED) | Supported |
| Trusted Platform Module (TPM) | TPM 2.0 |
| Removable Drives | Supported |
| Power Supply | Redundant hot-swappable |
| Dimensions (H × W × D) | 3.46 × 17.24 × 24.41 in (8.8 × 43.8 × 62.0 cm) |
| Weight | 49.6 lbs (22.5 kg) |
| Power Input | 100–240V AC, 50–60 Hz |
| Power Consumption | Avg: 251.36 W / Max: 302 W |
| Heat Dissipation | 857.73 BTU/h |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 8% to 90% (non-condensing) |
| Cooling | Front-to-back airflow |
| Operating Altitude | Up to 5,000 m |
| Certifications | FCC, CE, UL/cUL, CB, VCCI, RCM |
Get the Best Price for Fortimanager 1000G
Get expert guidance on deploying FortiManager 1000G for large-scale network management
FAQ about FortiManager 1000G
What is the device capacity of FortiManager 1000G?
FortiManager 1000G supports up to 1,000 managed devices and VDOMs, making it suitable for large-scale enterprise and service provider deployments.
How much storage does FortiManager 1000G provide?
It provides 32 TB total storage (8 × 4 TB drives), with approximately 24 TB usable capacity after RAID configuration.
Does FortiManager 1000G support redundancy?
Yes. It supports redundancy through RAID storage configurations and includes redundant hot-swappable power supplies to maintain system availability.
What is the power consumption of FortiManager 1000G?
The average power consumption is approximately 251.36 W, with a maximum of 302 W, depending on system load.
